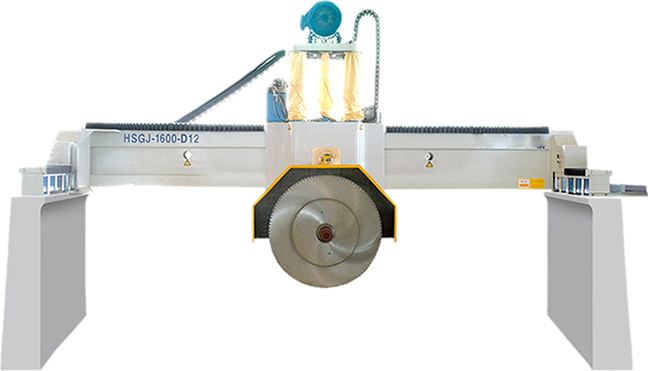

This machine gives improved cutting stability and perfection. This machine is the best and most stable machine ever made in China. Brilliant output in the long term and will give plenty of profit. This Machine can hold up to 12 blades and comes in two versions. HSGJ-1600 – D8 and HSGJ-1600 – D12 models.

Model	D8	D12
Max. number of blades	8	12	P
Max. blade diameter	2500	3000	mm
Crossbeam length	7500	8000	mm
X-axis	3500-4300	3500-4800	mm
Y-axis	2300	2500	mm
Z-axis	1050-1200	1050-1400	mm
Spindle drive motor	45	55	kw
Water consumption	14	20	M3/h
Overall dimension	8700x4500x6500	9200x5000x6800	mm
Gross weight	Approx 13.5	Approx 20	T
